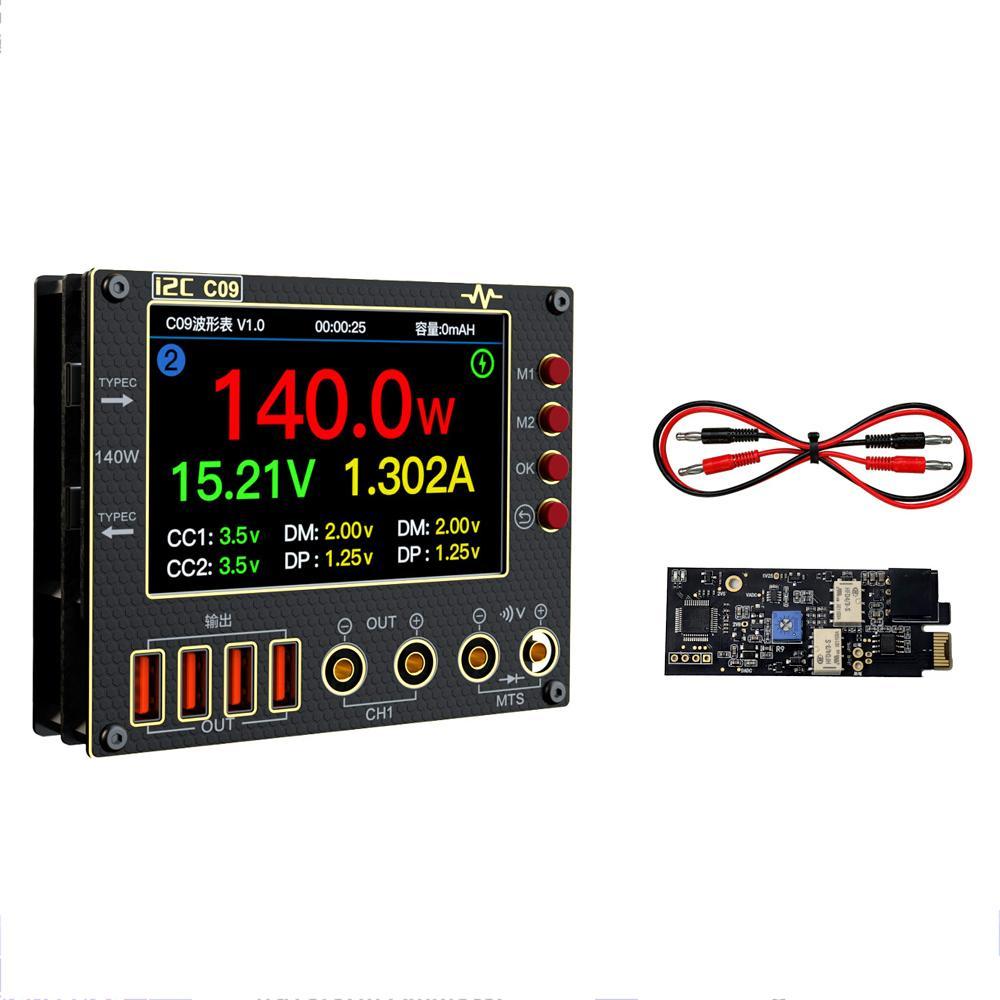

i2C C09 Charge Detection / Voltage Measurement Digital Waveform Ammeter, Model:With Expansion Board
$48.6
$69.98
1. Input voltage DC: 0~40V2. Device power supply: 5V / 2A3. Diode test: 0~2.8V4. Effective resistance: 0~50K5. Voltage measurement: 0~24V6. Two-channel voltage measurement: 0~40V7. Detection current: 0~8A8. Protection voltage: <60V9. Protection current: <15A10. Banana plug output voltage and current: 40V/8A11. USB output voltage and current: 20V/2A12. Voltage resolution: 1mV13. Current resolution: 0.1mA14. Current accuracy: 100 ampere15. Screen size: 4.0-inch16. Screen resolution: 320 x 48017. Product size: 11.4 x 9.3 x 2.9cm18. 0~40V Dual-channel voltage and current testing19. 4.0-inch IPS high-definition high-brightness display20. Three display modes: pointer, curve, and digital21. Millisecond-level instantaneous dynamic voltage measurement22. Ultra-high-speed diode scanning measurement23. 140W full-protocol charging power testing24. 0-24V positive/negative voltage measurement function
